G550 Pre-painted Galvalume Steel Coil AZ30-AZ275 Coating For Construction
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | HUIYI-PPGL |
| Certificering: | SGS, BV, ISO9001 |
| Modelnummer: | CGLCC |
| Document: | 15years' Warranty Letter (M...P).pdf |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 25 ton elke dikte |
|---|---|
| Prijs: | negotiated |
| Verpakking Details: | Standaard exportpakket. Geschreven met waterdicht papier. Vervolgens PE -film met hoge dichtheid. Na |
| Levertijd: | 20-35 dagen |
| Betalingscondities: | L/C, T/T, D/P |
| Levering vermogen: | 50000 ton per jaar |
|
Gedetailleerde informatie |
|||
| Productnaam: | Pre -geproted galvalume stalen spoel | Producttype: | Rol/blad/strook/golf |
|---|---|---|---|
| Zink coating: | AZ30-AZ275 | Dikte: | 0,12-2,0 mm |
| Spoel-ID: | 508/610mm | Verfdikte: | TOP: 10-25 μm ； terug: 5-8μm |
| Sollicitatie: | Bouwindustrie, dakbedekking | Betalingstermijn: | T/T, L/C, D/P |
| Basismateriaal: | Galvalume Staalplaat | Gewicht van de spoel: | 3-8 ton |
Productomschrijving

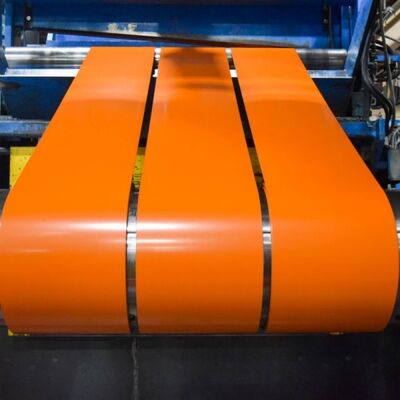

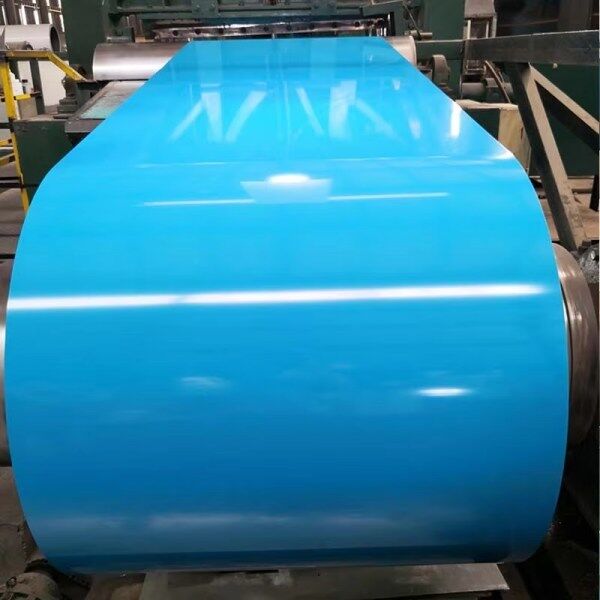

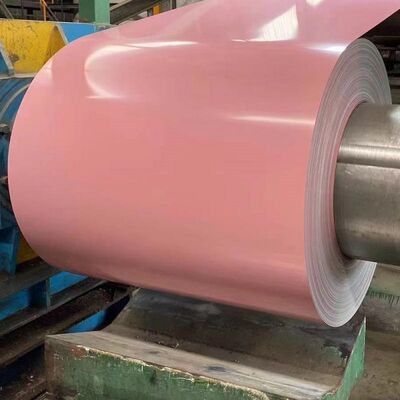

G550 Pre-painted Galvalume Steel Coil AZ30-AZ275 Coating For Construction
Pre-Painted Galvalume Steel Coil (PPGL) starts with a base steel sheet coated in aluminum-zinc alloy, then finished with a high-quality paint layer. This process creates a product that resists corrosion while providing an attractive, lasting appearance. Common applications include building panels, roofing, and home appliance components.
Technical Specifications
| Standard | JIS G 3322, EN 10169, ASTM A755 |
|---|---|
| Grade | CGLCC/CGLCH,DX51D/DX52D |
| Paint | PE / PVDF / PU / SMP / HDP |
| Zinc Coating | 30-275g/m2 |
| Thickness | 0.12mm - 2mm |
| Width | 914mm - 1219mm |
| Coil ID | 508/610mm |
| Processing Service | Construction materials, Roll forming, Cutting, Bending, Perforating, Welding |
Key Applications
- Construction Industry
Used for roofing, exterior and interior wall cladding, balcony panels, suspended ceilings, partitions, window frames, and door panels. - Solar Energy
Used for solar panel mounting brackets, where high weather resistance and long-term outdoor durability are required. - Home Appliance
Mainly applied in housings of refrigerators, washing machines, and air conditioners, where appearance and rust resistance are essential. - Agricultural Sector
Adopted for livestock barn cladding, poultry house roofing, grain storage silos, and greenhouse framing structures where corrosion resistance and durability are critical.
Packing and Shipping
Each PPGL coil is wrapped in VCI paper, kraft paper, and PE film, with PP edge guards and steel bands. Export orders use wooden pallets or crates with clear labeling. Desiccant bags available for humid regions. This packaging ensures coils arrive production-ready.
FAQ
Q: How can I get a quote?
Just let us know your product specifications, and we'll send you a detailed quote asap. You're also welcome to contact us via our Contact page.
Q: Can you make products based on my sample?
Absolutely. We offer custom production according to your physical samples or technical drawings.
Q: What payment methods do you accept?
We offer flexible payment options, including:
1) 30% T/T deposit, with the balance payable against scan copy of BL
2) 100% irrevocable L/C at sight
Other arrangements can be discussed to suit your needs.
1) 30% T/T deposit, with the balance payable against scan copy of BL
2) 100% irrevocable L/C at sight
Other arrangements can be discussed to suit your needs.
